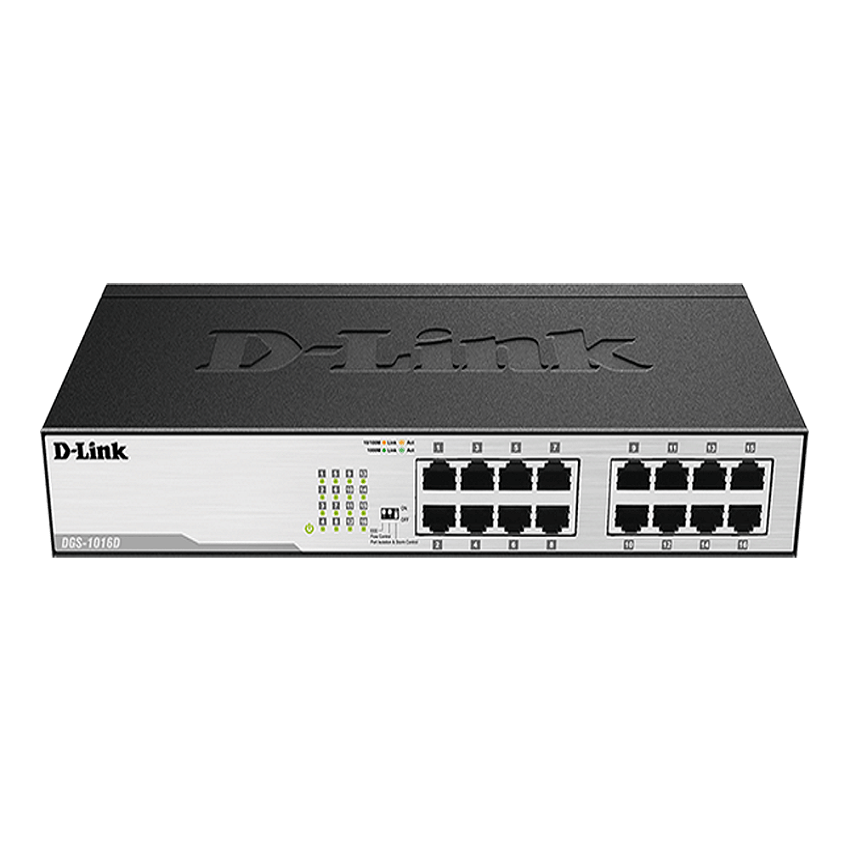

16-Port Gigabit Unmanaged Desktop Switch DGS-1016D
16-Port Gigabit Unmanaged Desktop Switch DGS-1016D - Image 2
16-Port Gigabit Unmanaged Desktop Switch DGS-1016D - Image 3

16-Port Gigabit Unmanaged Desktop Switch DGS-1016D

Compare
  • 16-Port Gigabit Unmanaged Desktop Switch DGS-1016DCable diagnostics troubleshooting
    • 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
    • .Compact and durable housing, high port count, and fanless design for noise-free operation

      Download the datasheet

₹2,550.00 ₹3,000.00

Compare
  • Cable diagnostics troubleshooting
  • 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
  • Compact and durable housing, high port count, and fanless design for noise-free operation
    Gigabit Ethernet Speeds for SOHOs and SMBs

    The D-Link DGS-1016D 16-Port Unmanaged Gigabit Switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

    Gigabit Connectivity

    The DGS-1016D brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

    Improved Network Efficiency

    The DGS-1016D incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.

    Green Technology

    The 16-Port Gigabit Unmanaged Switch helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. This environmentally friendly switch is also RoHS-compliant, uses recyclable packaging, and minimises the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

    Innovative Design

    The DGS-1016D features a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16-Port Gigabit Unmanaged Switch is small, lightweight, wall-mountable, and ideal for any business with demanding requirements and a small budget.

    Specification

    Comply with RoHS 6
    		 Yes
    Control
    		 802.3x Flow
    Dimensions
    		 280 x 125 x 44 mm
    Discharge
    		 Air Discharge 8KV
    Contact Discharge 4kV
    Energy Efficiency Ethernet (EEE)
    		 Yes
    FAN
    		 Fanless
    Head-of-line (HOL) Blocking Prevention
    		 Yes
    Humidity
    		 Operating: 0% – 95% RH
    Storage: 0% – 95% RH
    Interfaces
    		 16 x 1000Base-T
    Auto MDI/MDIX
    Jumbo Frame
    		 10,000 Bytes
    MAC Address Table Size
    		 8192
    Maximum Forwarding Rate
    		 23.81Mpps
    Maximum Heat Dissipation
    		 34.3 BTU/h
    Maximum Power Consumption
    		 10.07W
    MTBF
    		 1,882,372 hours
    Packet Buffer Size
    		 512KBytes
    Power Input
    		 AC:100 ~ 240 V
    Power Saving
    		 By Cable Length
    By Link Status
    Protection
    		 Surge/Lightning Protection (AC Power Inet) : 1kV
    Surge/Lightning Protection (All Ethernet Ports) : 1kV
    Standby Power Consumption
    		 3.02W
    Store & Forwarding Forwading
    		 Yes
    Switching Capacity
    		 32 Gbps
    Temperature
    		 Operating: 0 ~ 40 °C
    Storage: -10 – 70 ˚C
    Weight
    		 1.023 kgs
